Carman Fluid Bed Dryer System

Includes Heat Source & Vibratory Feeder

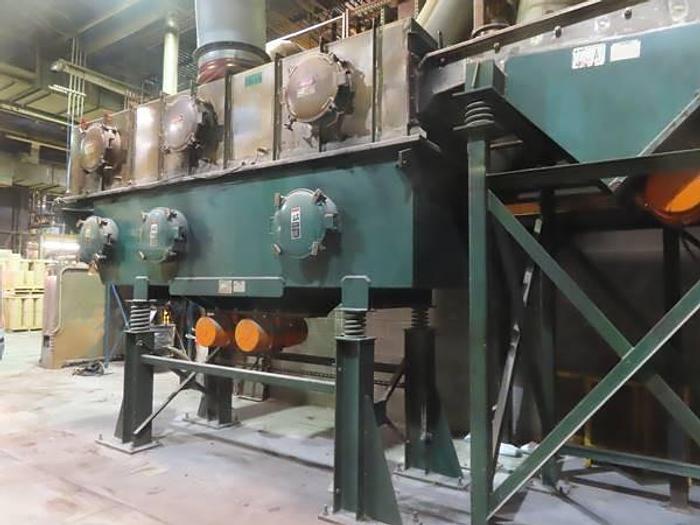

One (QTY:1) USED Carman Vibratory Fluid Bed Dryer

• 40" wide perforated bed, 15' long
• 304 stainless steel bed, with 9/64 diameter drilled holes.
• Zone 1 and 2 are 5'9" , Zone 3 is 2'9"

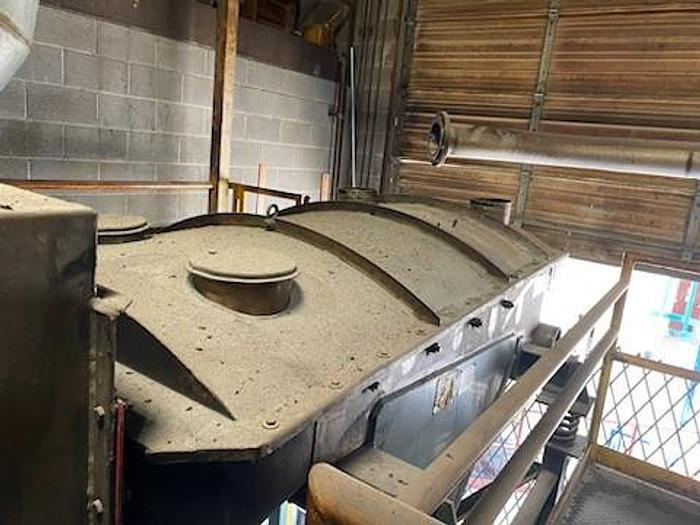

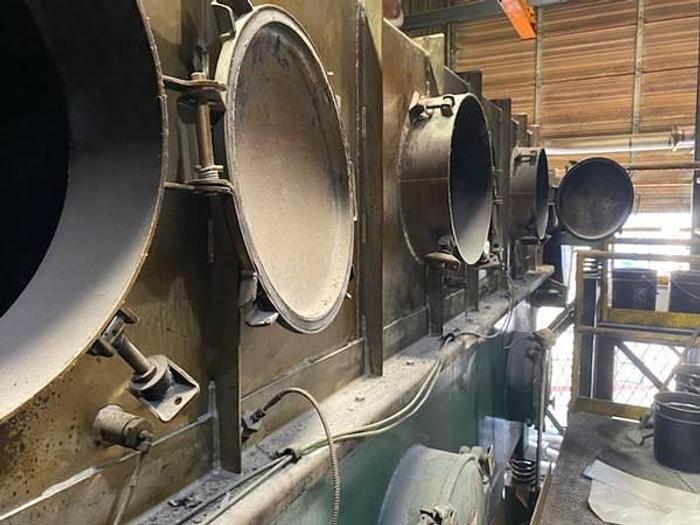

• Exhaust hood has 3 access doors.
• Equipped with a Carman Vibratory feeder 48" x 84"

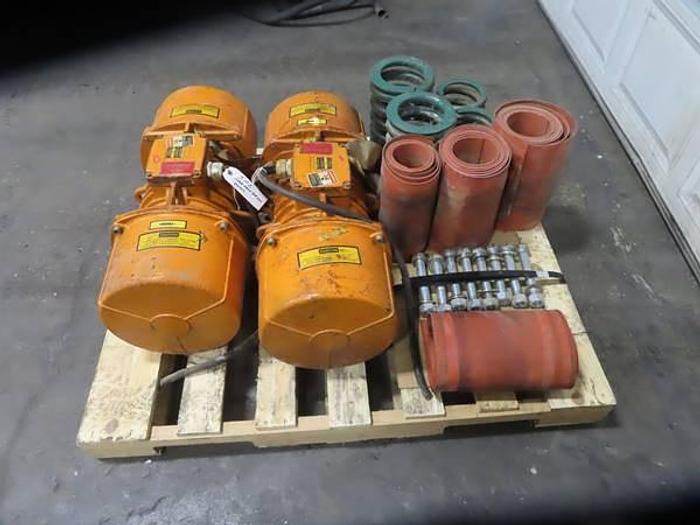

• Feeder is equipped with two Vibratory motors.
• Feeder is on 8' high legs, and with a bolt on cover.
• Feeder has a slotted bed for dewatering prior to entering the dryer.

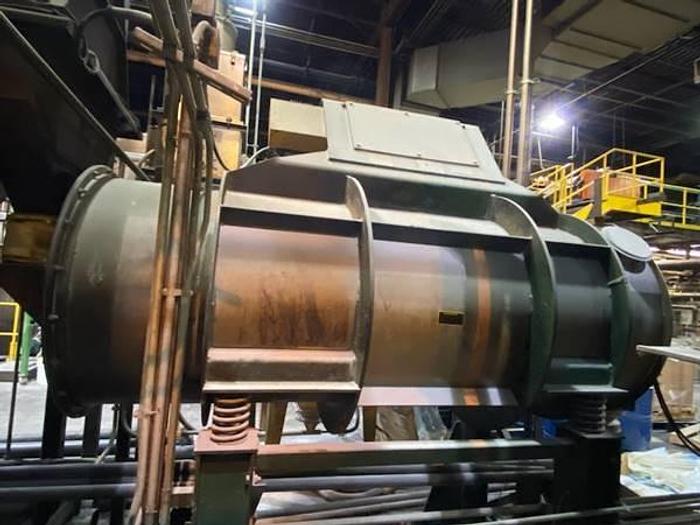

Dryer discharges to a Carman Vibratory Tumbler for dusting pellets

**Can be set up differently, but previously set up as the following

• Zone 1 - with 40 hp NY Blower, 7900 CFM
• Zone 2 with 25 hp NY Blower, 5900 CFM
• Zone 3 with 15 hp NY Blower, 2400 CFM

Adj. Weir for regulating the discharge speed.

Each blower blew air across two radiators

• Aerofin Coils 42" L-R, 57" from top to bottom

**One was for glycol and one for hot oil.

**We have the radiators but not the heat or cooling source.

Price: $53,650.00 U.S.D.

F.O.B.: OHIO U.S.A.

Subject to prior sale or withdrawal.
