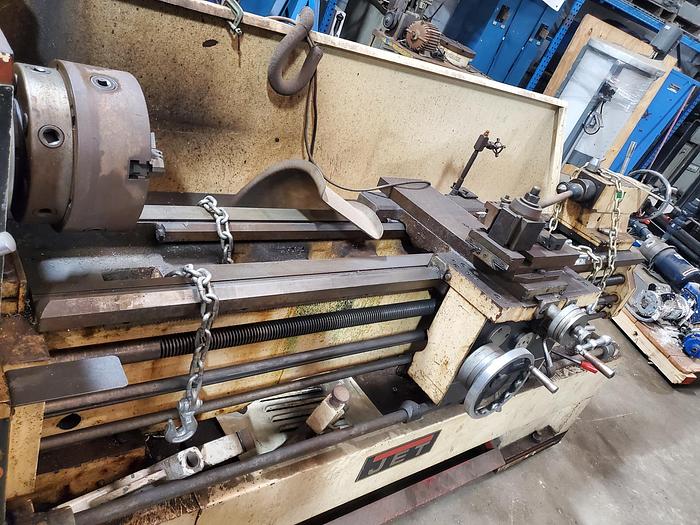

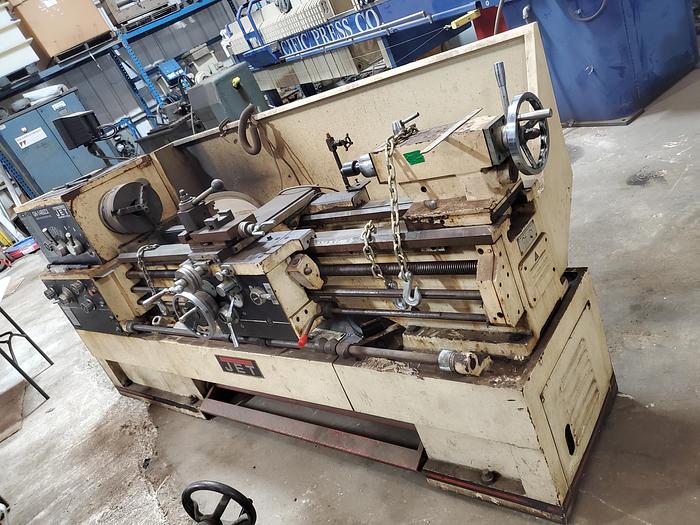

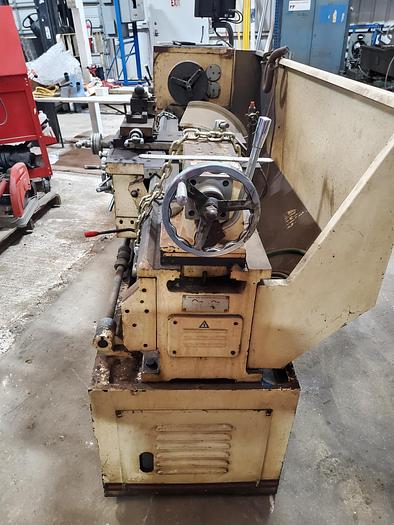

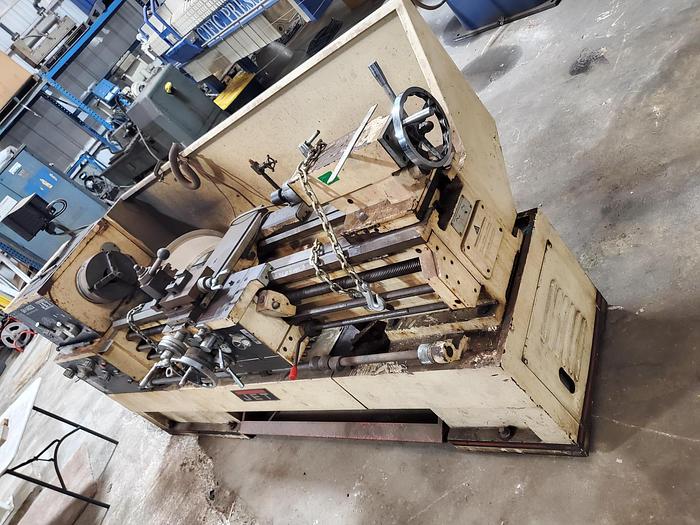

Jet Industrial Precision Lathe

[ME-17] : Jet Lathe GH 1460 ZX

Brand : Jet

Model : GH 1460 ZX

Year : NOT SURE LOOKS LIKE IT COULD BE 2006

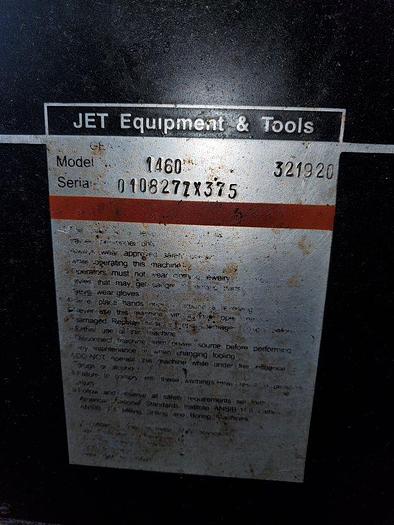

MFG # : 0108277X375

The 14in. JET ZX Series large spindle bore metal lathe is designed exclusively by with a 3 1/8in. bore spindle supported by two tapered and one ball bearing.

Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametric and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite B on bed sliding surfaces.

What's Included

 (1) Metal lathe

Features + Benefits

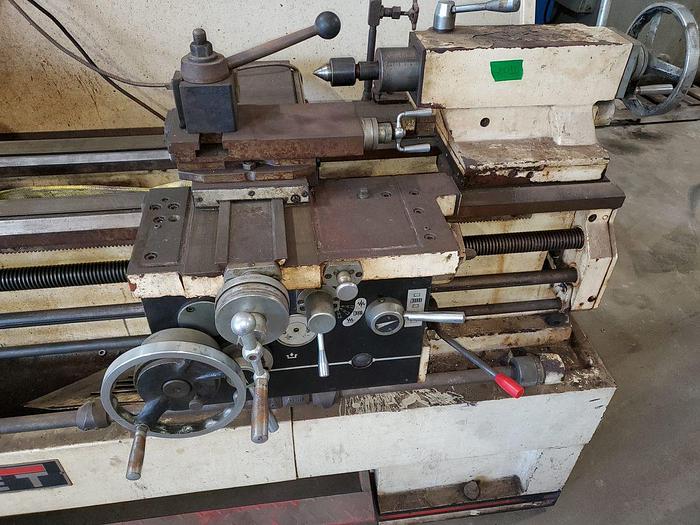

T-slotted compound slide featuring a four-way tool post

One-piece cast iron base absorbs vibration allowing heavier cuts

High-quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground

Removable gap allows up to 23 5/8in. diameter work

Five-position automatic carriage stop increases productivity

Attractive chrome control levers, dials and knobs

Tolerance test certificate included 10in. 3-jaw scroll chuck with top reversing jaws

12in. 4-jaw independent chuck

12in. face plate

Four-way tool post

Follow rest

Large-capacity steady rest

Fully integrated coolant system

Full-length splash guard and coolant return

Large, easy-to-use foot brake

Articulating halogen work lamp

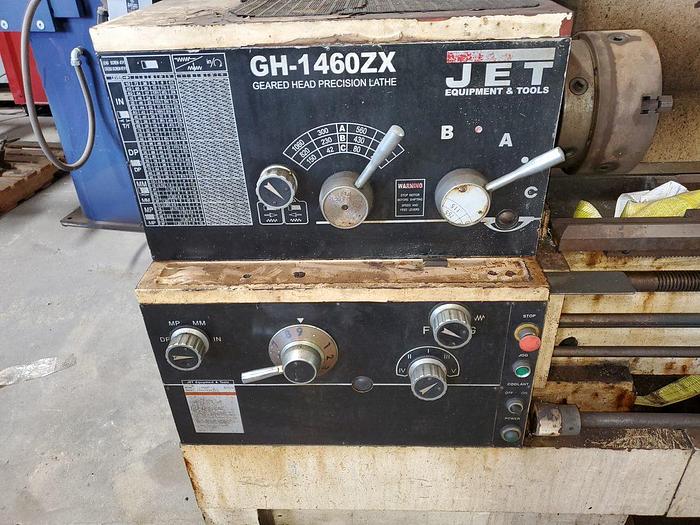

Centrally located controls with jog button

Threading dial

Mounting pads and levelers

Spindle sleeve (MT-7 to MT-5)

Dead center

Live center

4 Jaw 14" Chuck

RPM : 35-1500

220 Volt

3 Phase

10" over cross slide

2" 1/2" spindle bore

YOUR INSPECTION IS INVITED

More specifications:

MODEL GH-1460ZX

Stock Number.................................... 321920

Capacities:

Swing over Bed (in.)............................14

Swing over Cross Slide (in.)....................7-5/8

Swing Through Gap (in.).........................23-5/8

Length of Gap (in.).............................12-1/4

Distance between Centers (in.) .................60

Headstock:

Spindle Bore (in.)............................. 3-1/8

Spindle Mount...................................D1-8

Spindle Taper with Sleeve ......................MT-7(MT-5)

Number of Spindle Speeds .......................12

Range of Spindle Speeds (RPM) ..................42 to 1800

Gearbox:

Number of Longitudinal and Cross Feeds .........122

Range of Longitudinal Feeds (in./rev.)..........0.0015 to 0.0913

Range of Cross Feeds (in./rev.) ................0.0006 to 0.0365

Number of Inch Threads .........................61

Range of Inch Threads (in.).................... 1-5/8 to 72

Number of Metric Threads .......................24

Range of Metric Threads (mm)....................0.05 to 20

Compound and Carriage:

Maximum Tool Size (in.) ........................ 1 x 1

Maximum Compound Slide Travel (in.)............. 5-1/8

Maximum Cross Slide Travel (in.) ................9

Carriage Travel (in.)............................55

Tailstock:

Tailstock Spindle Travel (in.)...................5

Tailstock Taper .................................MT-4

Steady Rest Capacity (in.) ......................1/2 to 3-1/2

Follow Rest Capacity (in.) ...................... 3/8 to 7

Width of Bed (in.)...............................13-3/8

Overall Dimensions (in.)(LxWxH) .................116-1/2 x 40 x 46-7/8

Motor............................................7-1/2HP, 3Ph, 230/460V*

Approximate Net Weight (lbs.) ...................5380

Condition : Used; Sold 'As is' 'where is'.

FOB: San Antonio, TX 78225, USA Send your own LTL truck OR We can arrange shipping at cost + 15%

Shipping Dimensions (approx) : 72” H x 96” L x 60” W

Estimated Weight : 4,655 lbs.
