14" Cincinnati Milacron Hydraulic Grinding Machine

14" Cincinnati Milacron Hydraulic Grinding Machine

$15,000 (USD)

Please contact us for your best price.

Location:San Antonio, TX

orCall +1 (210) 696-6300

Description

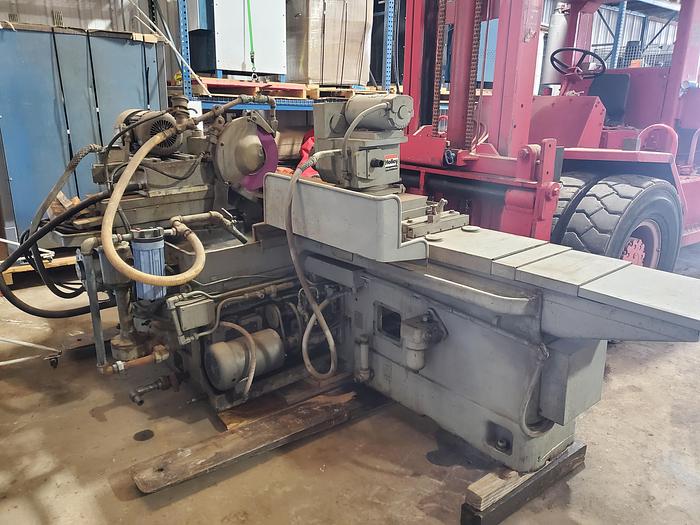

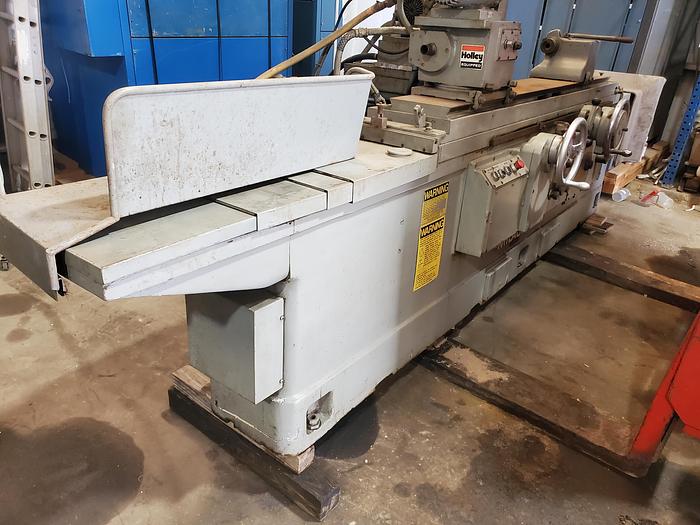

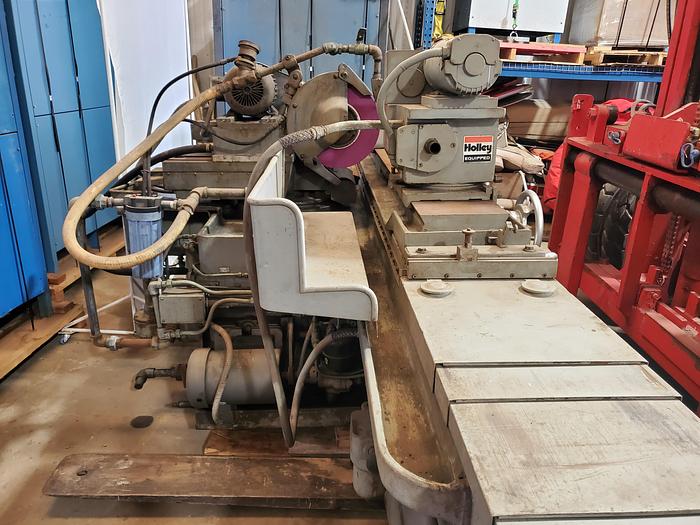

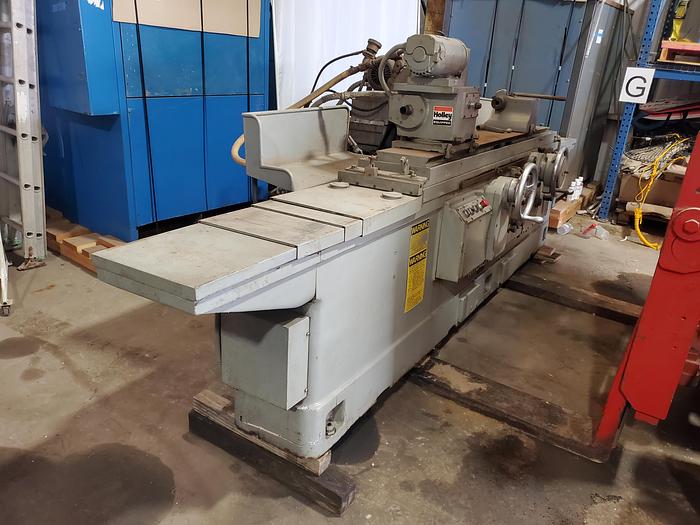

[ME-03] : 14" Cincinnati Milacron Hydraulic Grinding Machine


This grinding machine is as versatile as it is productive. Ideal for work such as : taper, bevel, straight cylindrical, shoulder, internal, chuck work and face grinding.


Principal Machine Specifications

Swivel Range: 90 degree lower swivel / 30 degree upper swivel

Cross Feed : Automatic In Feed

Automatic Lubrication System

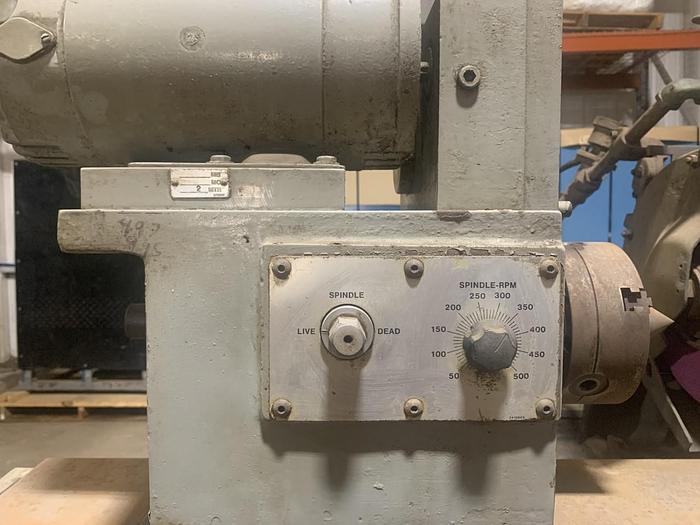

Headstock is equipped with a drive which provides variable speeds from 50 - 500 RPM.


Headstock and Footstock

Taper hole in headstock and footstock spindles : No.9 B & S

Number of work rotation speeds : Infinite

Range of work rotation speeds RPM : 50-500


Table Traverse

Number of table traverse speeds : Infinite

Range of table traverse speeds, inches per min : 3 - 220


Power Requirements

Wheelhead Motor : 3HP

Hydraulic Pump Motor : 1HP

Headstock Motor : 1HP

Internal Grinding attachment motor : 1HP

Cutting fluid pump motor : 1/4 HP


Capacity

Maximum swing over table : 14-15/16"

Max Diameter machine will grind with full size wheel : 14-15/16"

Max Diameter machine will grind with either full size or worn out wheel : 0"

Floor space Required : 72-3/4 x 185


Shipping Data

Net Weight (approx including all motors) : 9,900 lbs.

Gross Weight (domestic) : 12,100 lbs.

Gross Weight (export) : 14,100 lbs.

Approx size of case : 166 x 62 x 73

Volume of case, Cubic Feet (approx) : 420


Condition : Used; Sold 'as-is', 'where-is'. Your inspection is invited.

FOB: San Antonio, TX 78225, USA Send your own LTL truck OR We can arrange shipping at cost + 15%

Specifications

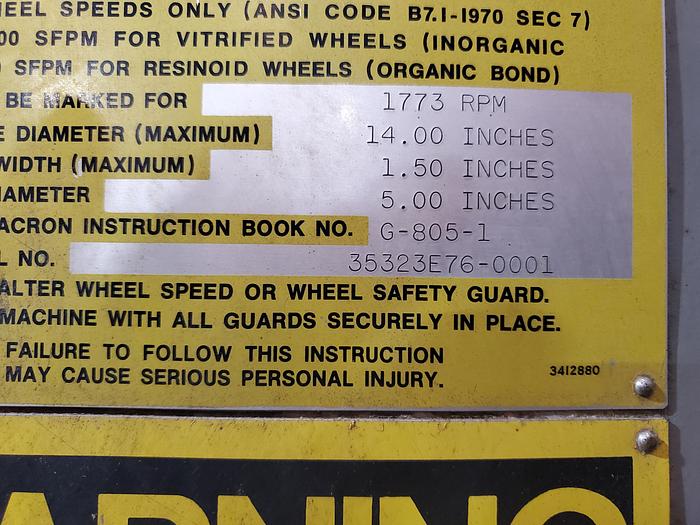

ManufacturerCincinnati Milacron
ModelG-805-1
ConditionUsed
Serial Number35323E76-0001
Stock NumberME-03
